Nam Neun 1 & 3 hydropower projects have been called Nam Nern 1 & 2 in the past. There was also a Nam Neun 2 project planned but cancelled due to a negative impact study.
The Lao government in 2009, through a memorandum of understanding, granted permission to Indo China Consulting Co Ltd. to carry out a feasibility study for the Nam Neun 1 & 3 hydropower projects. Five years later, a project development agreement (PDA) was apparently signed. Not sure what happened next but it seems that Indo China Consulting Co Ltd. is no longer involved with the project.
Nam Neun dams 1 & 3 were scheduled to begin construction in 2016 but it seems there has been another change in developer and contractors. Around the year 2016 Vangsub Development and Investment Co Ltd. and THB Group Sole Co Ltd. created a joint venture to develop both the Nam Neun 1 and 3 hydropower plants in Xieng Khuang and Huaphan Provinces with a completion date projected for 2022.
Not sure what happened again but in early 2024 Phongsubthavy Group seemed to be in charge of completing the Nam Neun 1 project and has awarded construction contracts to a joint venture of Vietnamese contractors who in March 2024 were working at full speed on the project still in early stage of construction.
According to a Vientiane Times news report on 21 June 2024, the right to develop the Nam Neun 1 project has been transferred to Nam Neun 1 Hydropower Sole Co Ltd., a subsidiary of ST Group. This report came from the Concession Agreement signing ceremony that took place in Vientiane on 19 June 2024.
On July 11, 2024, in Vientiane Capital, after a contract negotiation process, Nam Neun 1 Hydropower Sole Co., Ltd. (Project Owner) and a Contractor Consortium, headed by Construction Joint Stock Company 47 and Power Engineering Consulting Joint Stock Company 3, entered into and signed a novation EPC Contract for Nam Neun 1 Hydropower Project, with total value of USD $184,999,999. See images below:
A novation is an agreement between contracting parties that allows the substitution of a new party for an existing one.
The Nam Neun 1 project is expected to be completed by 2028.
In 2024 it seems that Nam Neun 3 project is not progressing and may be inactive. We haven't found anything recent on the web.
The two plants 1 & 3 would have a total installed capacity of 184 MW together and estimated generation capacity of 825 GWh per year. The output was originally planned for purchase by EDL for domestic consumption but it now seems both plants will export most output to Vietnam.
The original estimated cost of the two projects was US $400 million and the Lao govt. would hold a 10% ownership share.

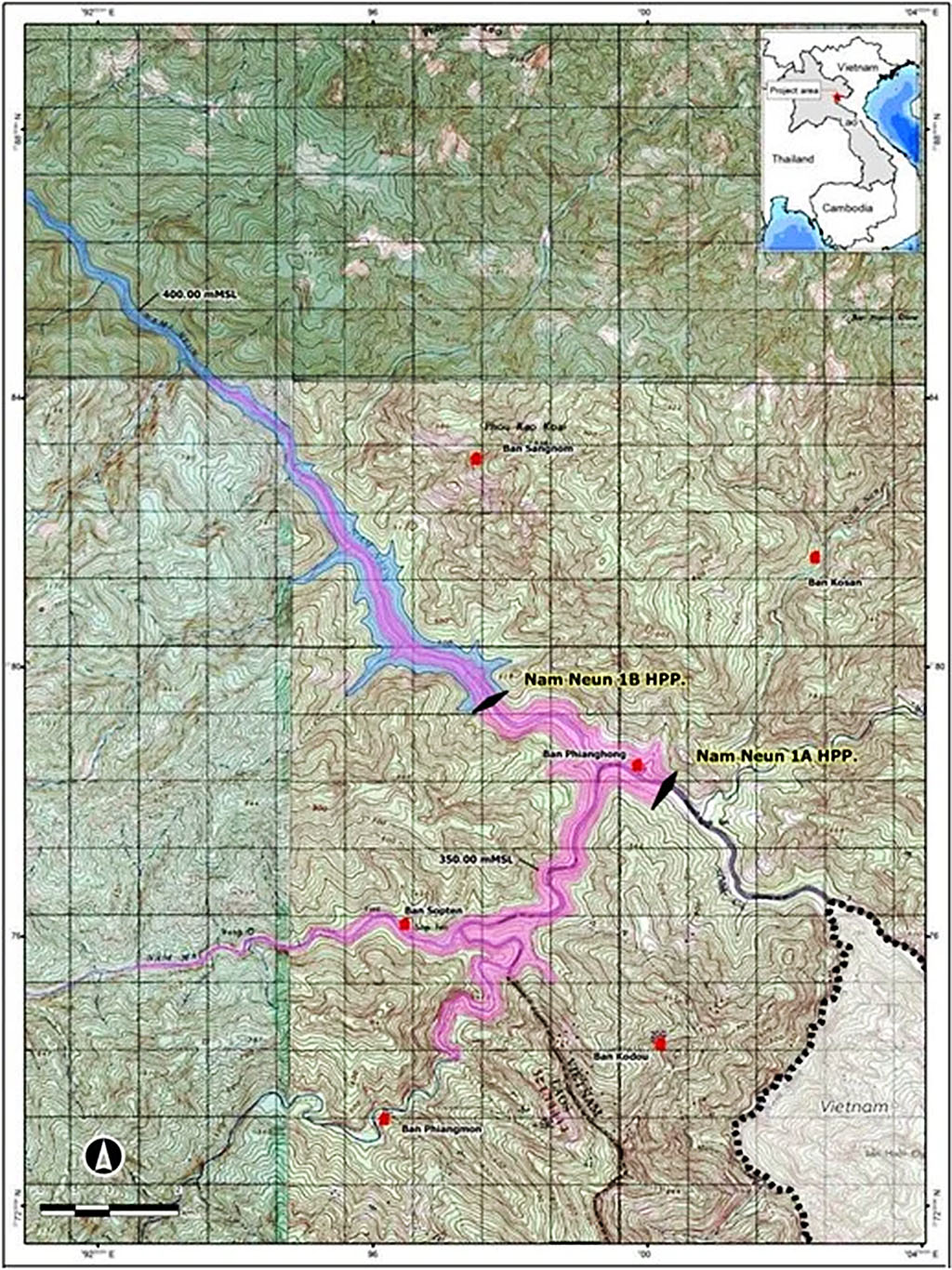

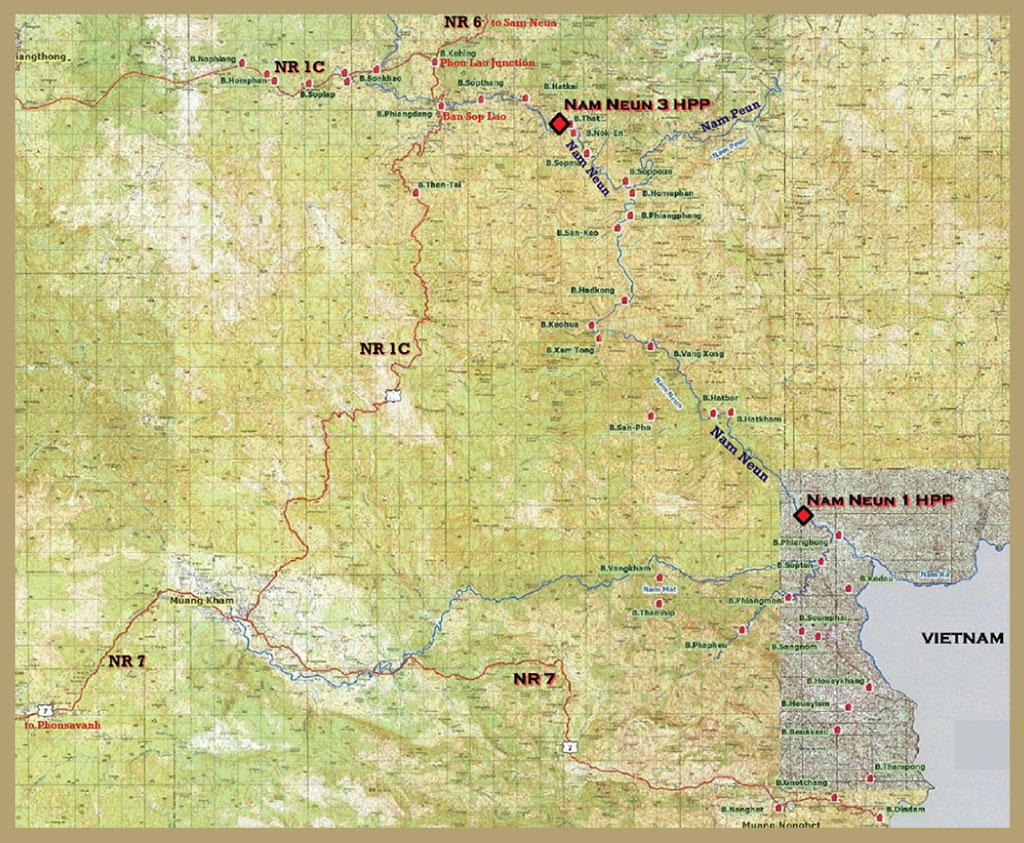

Nam Neun 1 & 3 hydropower project locations shown on map below:
zzzzzzzzzzz

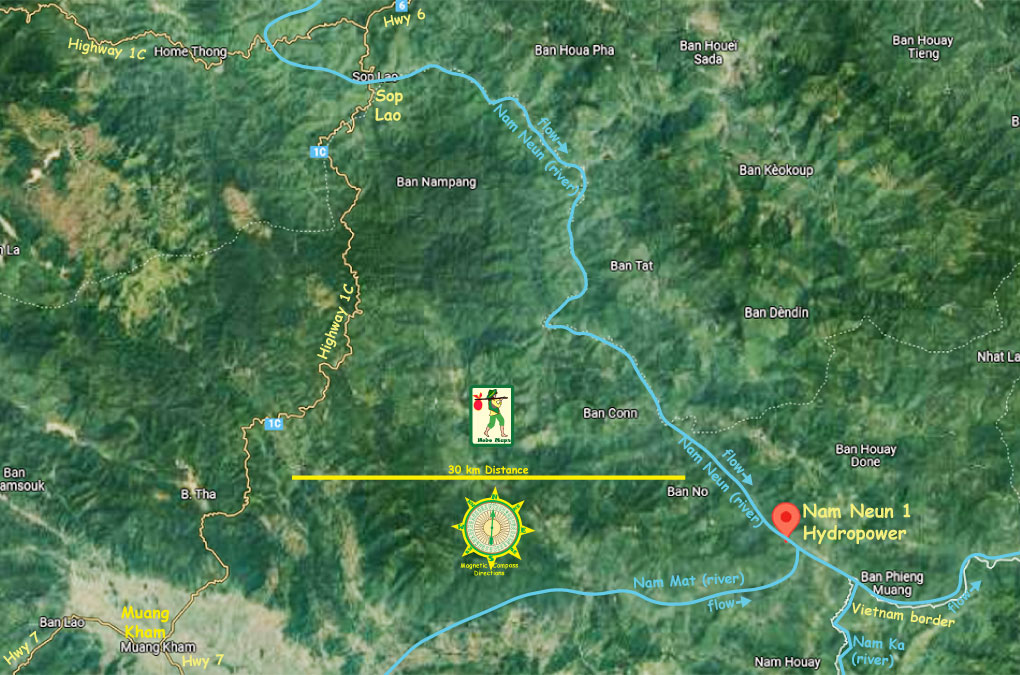

Nam Neun 1 project is located near Phiang Hong Mountain Village, Muang Nonghet District, Xiengkhuang Province, Lao PDR. The coordinates are 19°42'29.6"N 104°01'25.7"E (19.708227, 104.023802) as shown in old satellite image below with no visible activity:
Prior to this latest June 2024 transfer, in Vientiane Capital on Nov. 29, 2023, Phongsubthavy Group Sole Co., Ltd., signed and awarded an EPC contract to a consortium of Vietnam-based contractors, headed by Construction Joint Stock Company 47 and Power Construction Consulting Joint Stock Company 3 for the design, supply, installation of hydraulic mechanical equipment and construction of Nam Neun 1 Hydropower project. The total contract value is 185 million USD.
The construction contract includes main dam, open spillway, rolling weirs, diversion tunnels, water intakes, power plant and power distribution facilities.
The concrete dam will be 520 meters long and 133 meters high. The water catchment area is 3,764 square kilometers and the reservoir covers an area of 17 square kilometers.
The project includes two turbine-generator units with a combined capacity of 124 MW and annual production capacity of 576 GWh per year.
The project is expected to complete the grid connection in the fourth quarter of 2027 and begin exporting electricity to Vietnam in 2028 pursuant to a Memorandum of Understanding (MOU) purchase agreement signed with the government of Vietnam in December 2020.
A 110 kV & 33 km-long transmission line is planned to connect the Nam Neun 1 hydropower plant to the Nam Yeuang Cascade hydropower project’s power station. From there, a 220-kV transmission line will transfer power across the border to Nong Cong power station in Vietnam as shown in the map below. See enlarged version HERE.

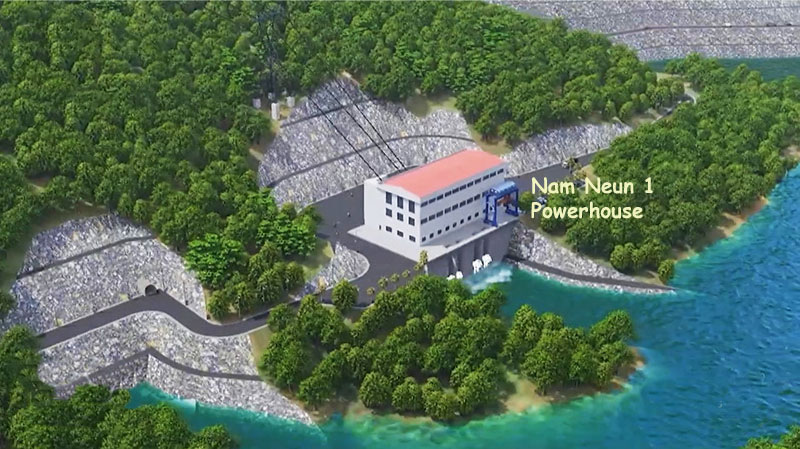

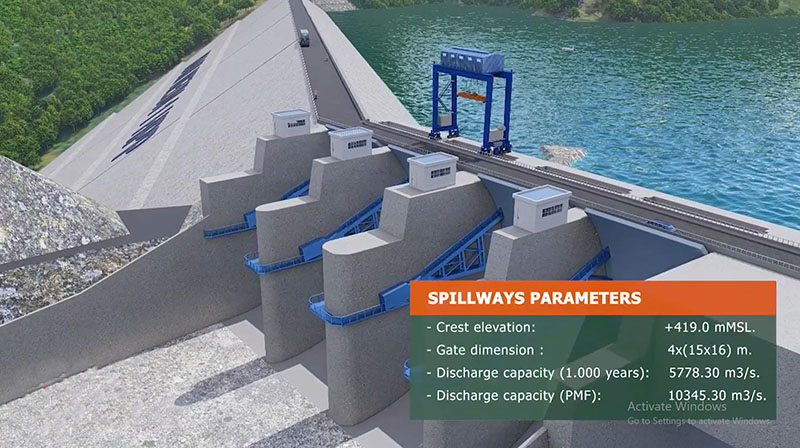

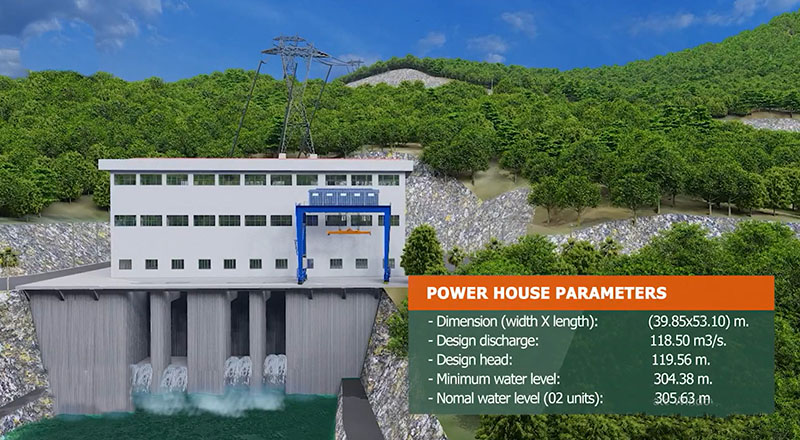

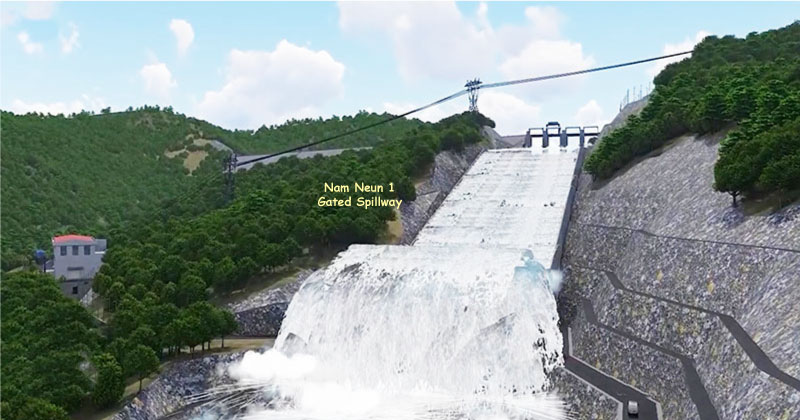

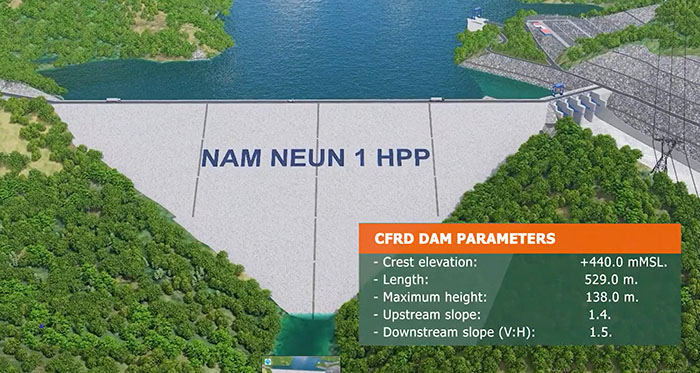

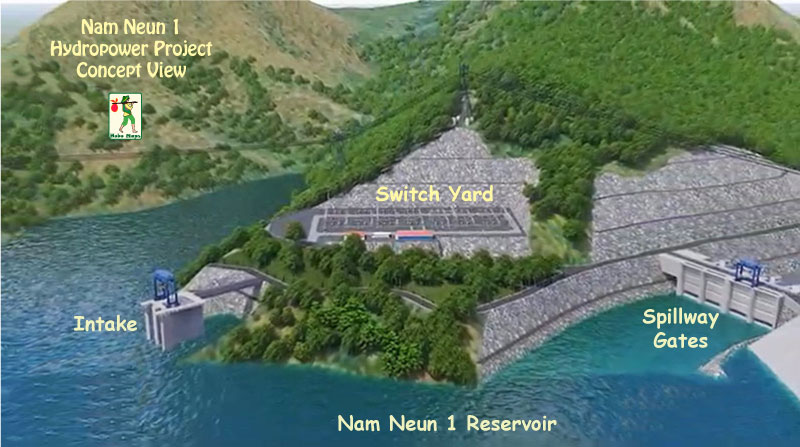

Concept image below shows what Nam Neun 1 project may look like.

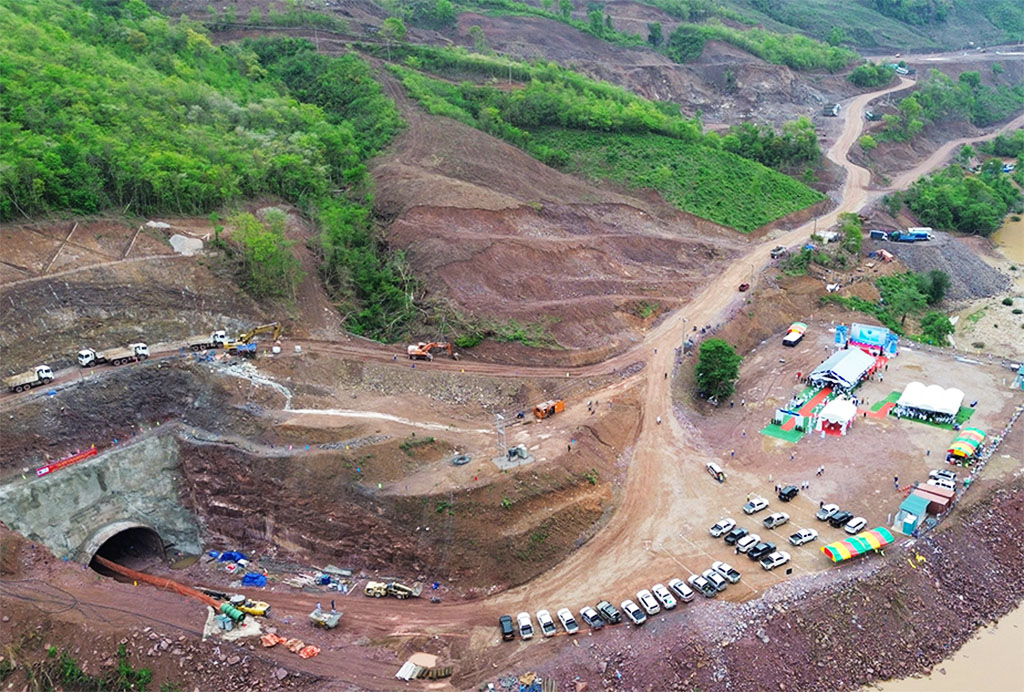

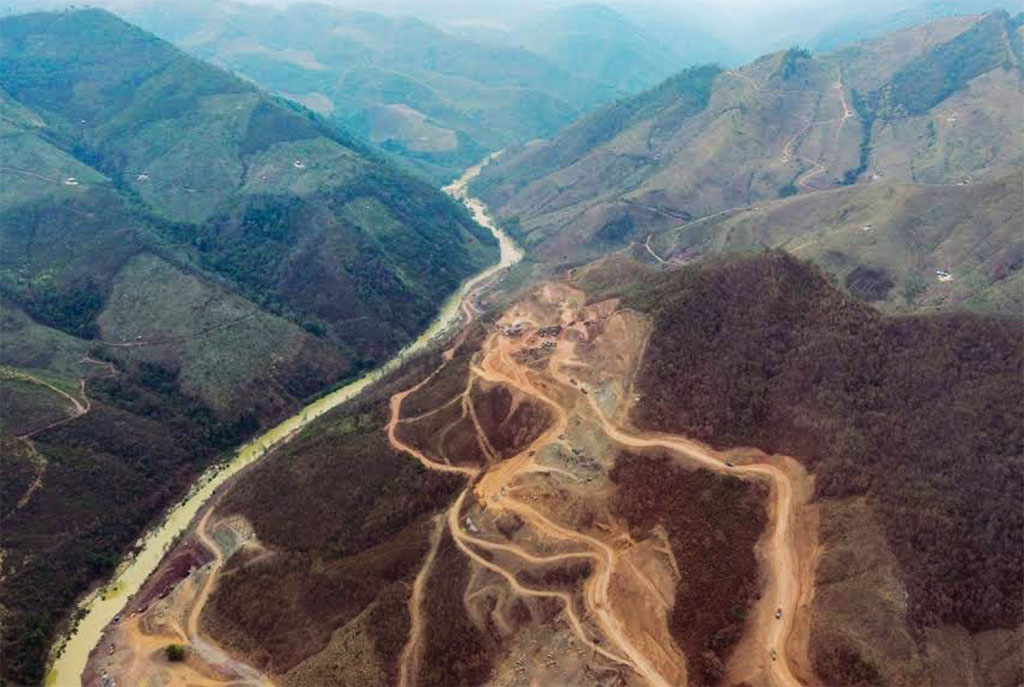

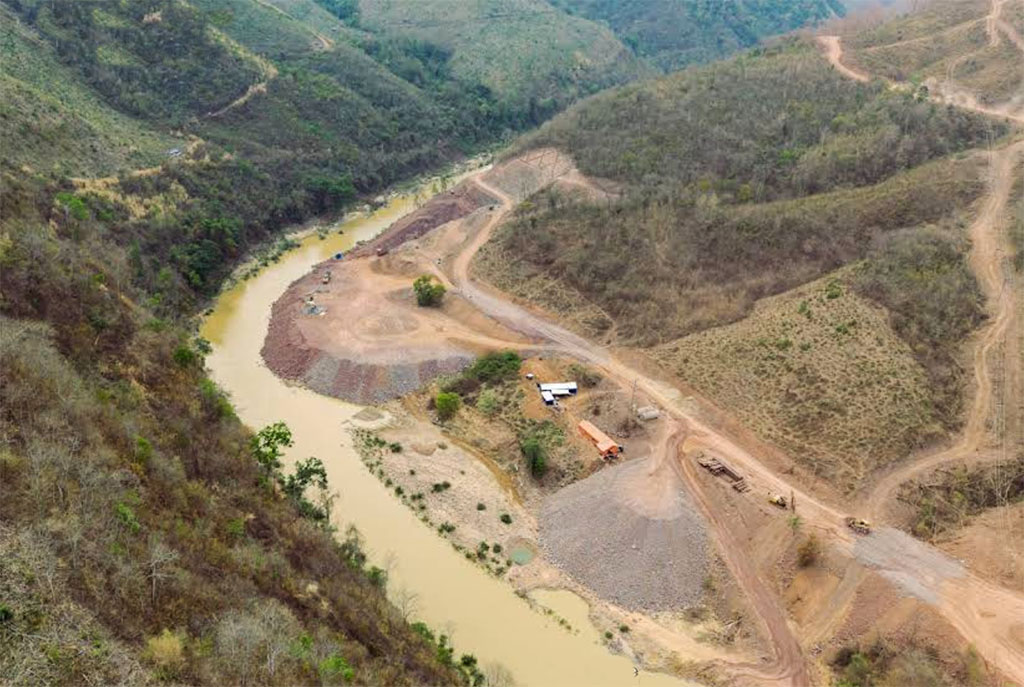

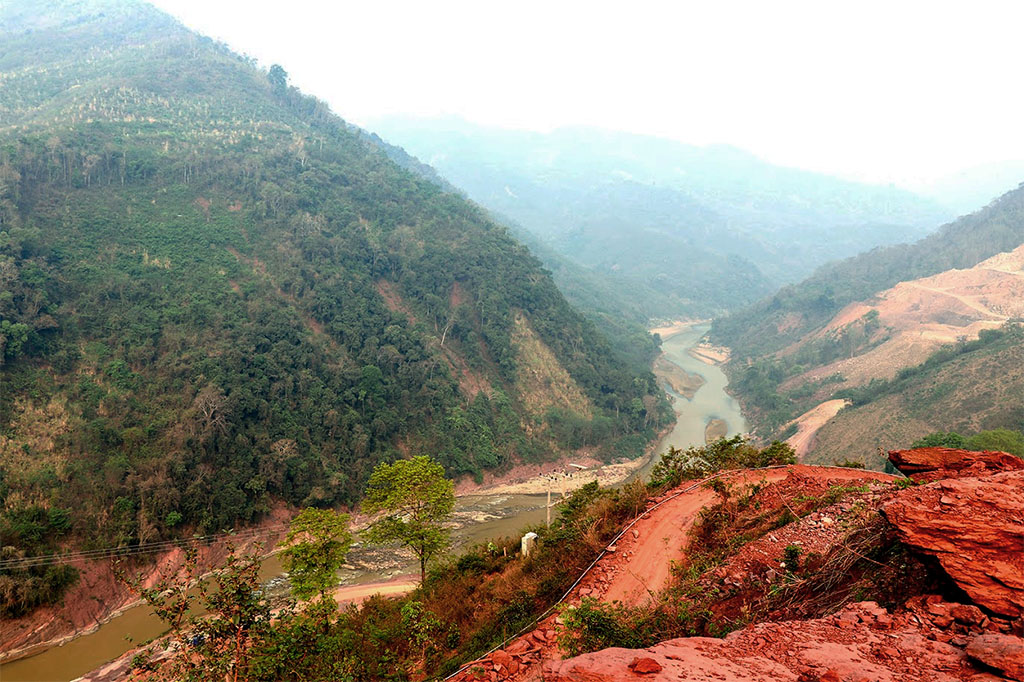

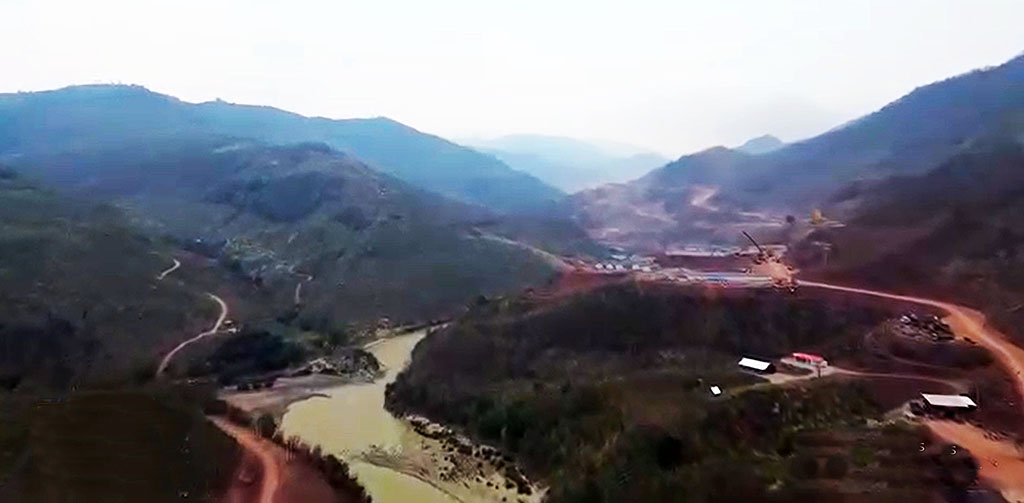

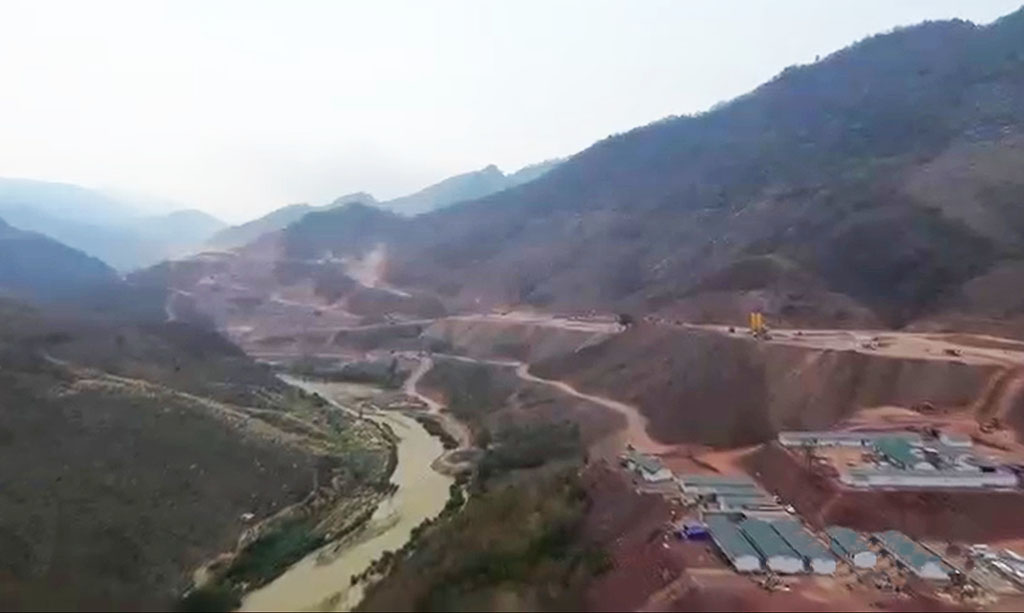

Nam Neun 1 site image below of where the project will be built.
Nam Neun 1 EPC Contractor - Construction Joint Stock Company 47 (HOSE: C47) staff review core samples below in the planning phase:

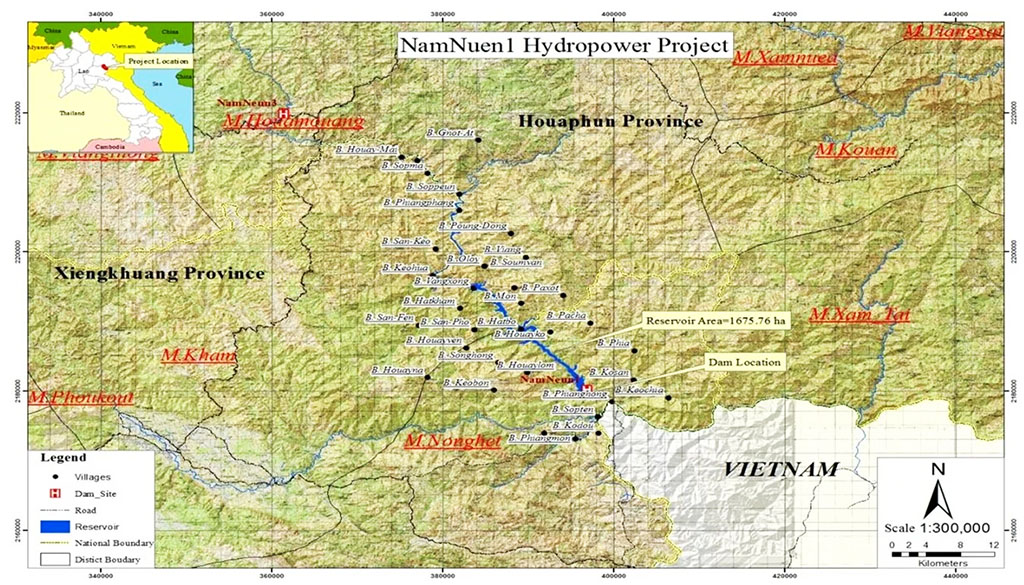

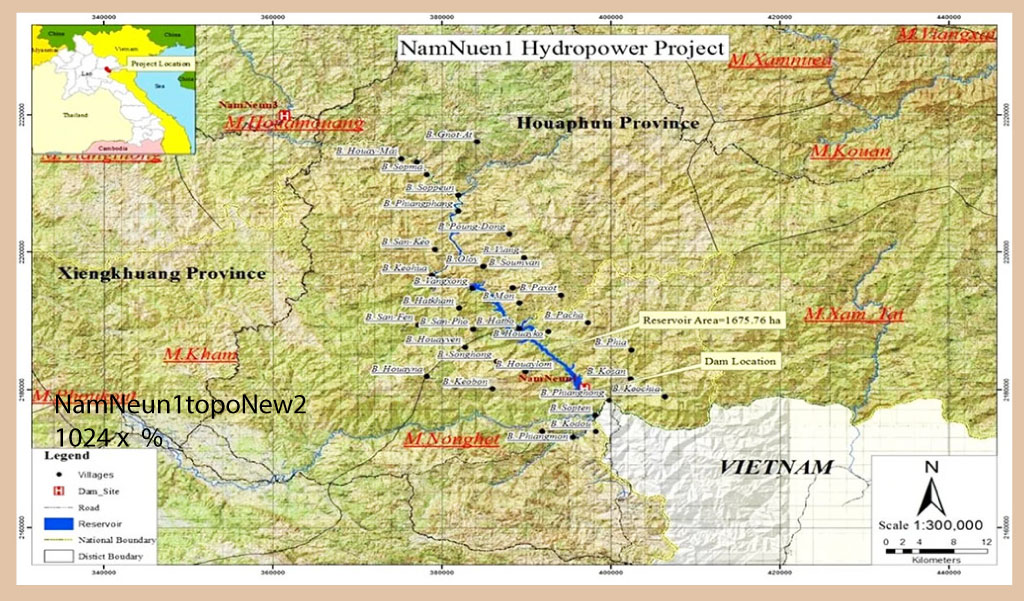

Satellite image below shows Nam Neun 1 planned impact areas near the border with Vietnam in the upper right corner of the image.
In February 2024 Vietnam-based "Construction Joint Stock Company 47 (HOSE: C47)" was selected as the leading EPC contractor for the Nam Neun 1 Hydropower project. The project has an estimated cost of 185 million USD.

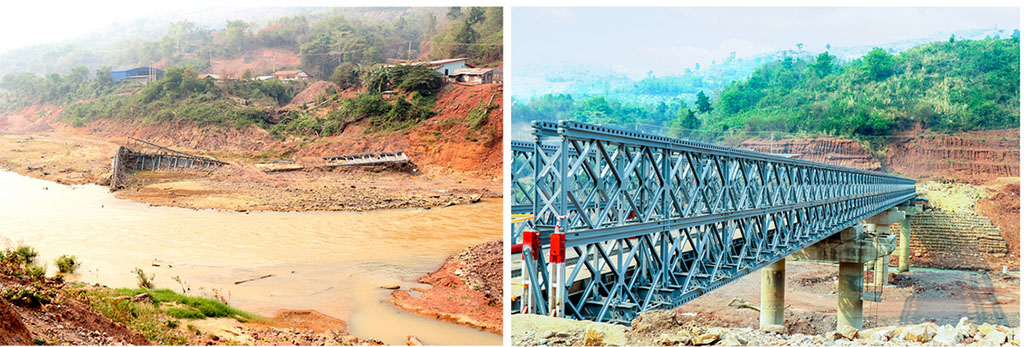

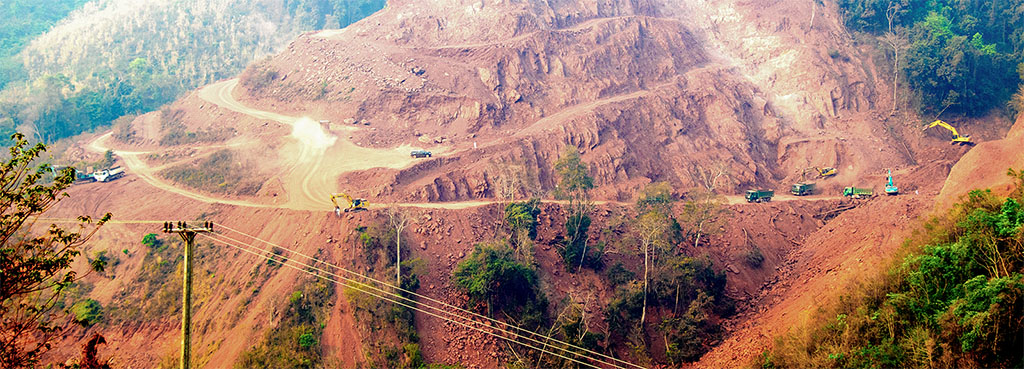

Immediately after signing the contract, C47 carried out survey work, test drilling, topographic measurements, project drawings, geological maps, etc. In February 2024 construction of roads to the dam site were underway as well as completion of camp and auxiliary areas. Design surveys were conducted to prepare and upgrade the total site plan.
In 2024, there are three important project items that C47 needs to complete:
- First is the construction of a diversion tunnel starting in April and hopefully completed in November 2024 to build cofferdams and divert water.
- Second item is to complete the excavation of the main dam foundation and diversion channeling the stream through the tunnel so that the cofferdam can be built and serve the dam construction in 2025.
- The third item is the excavation of the surface discharge spillway.

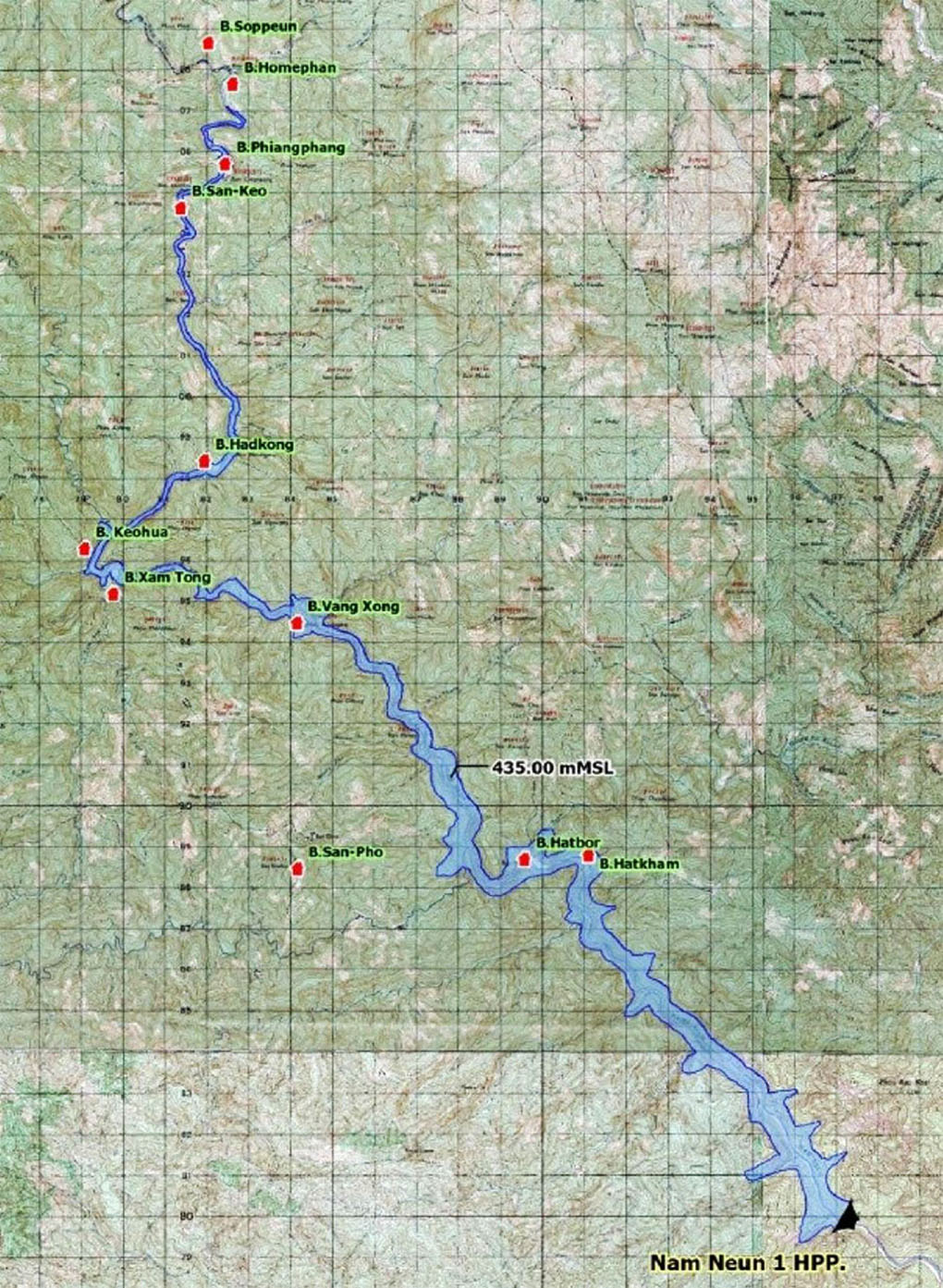

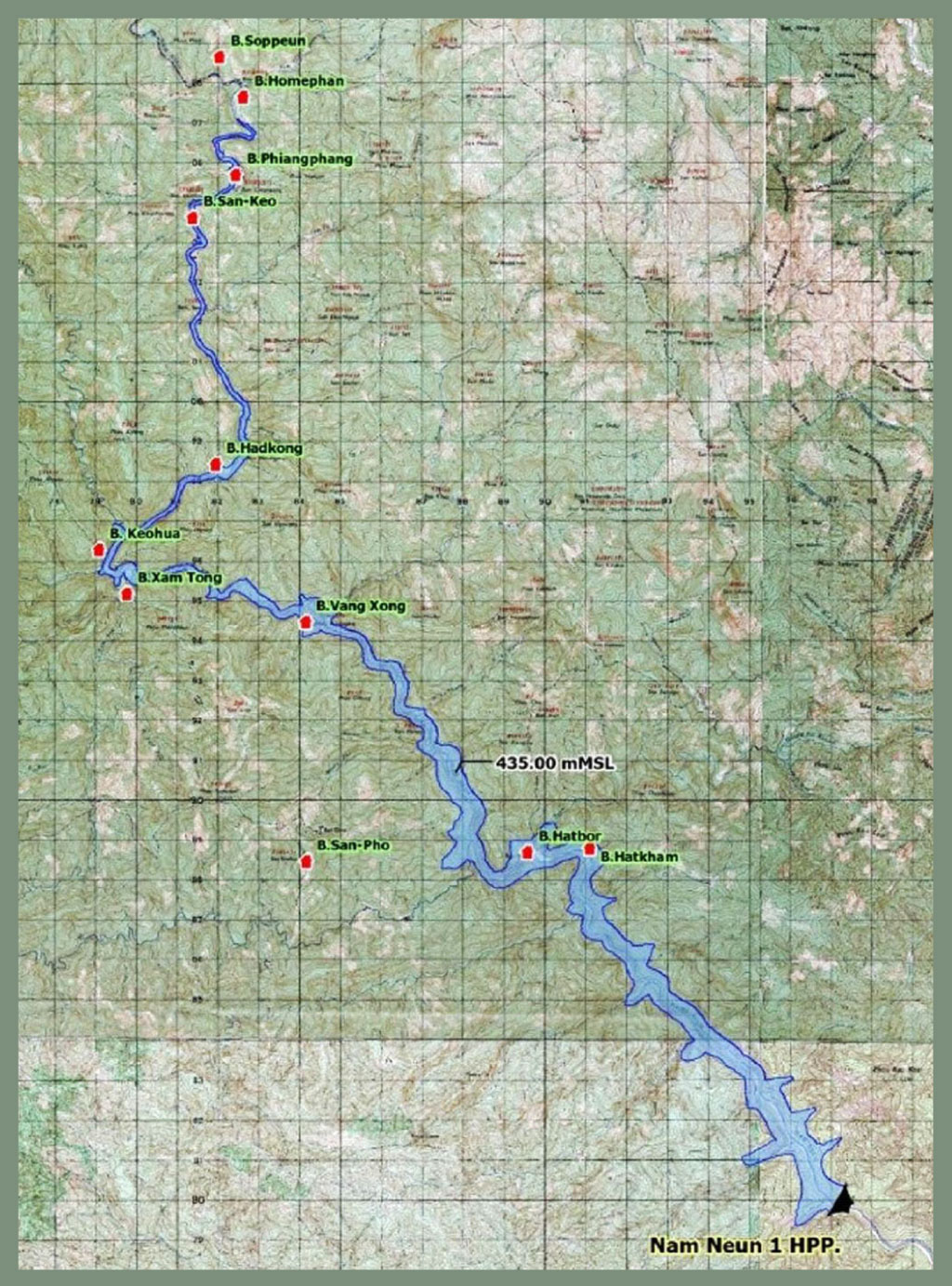

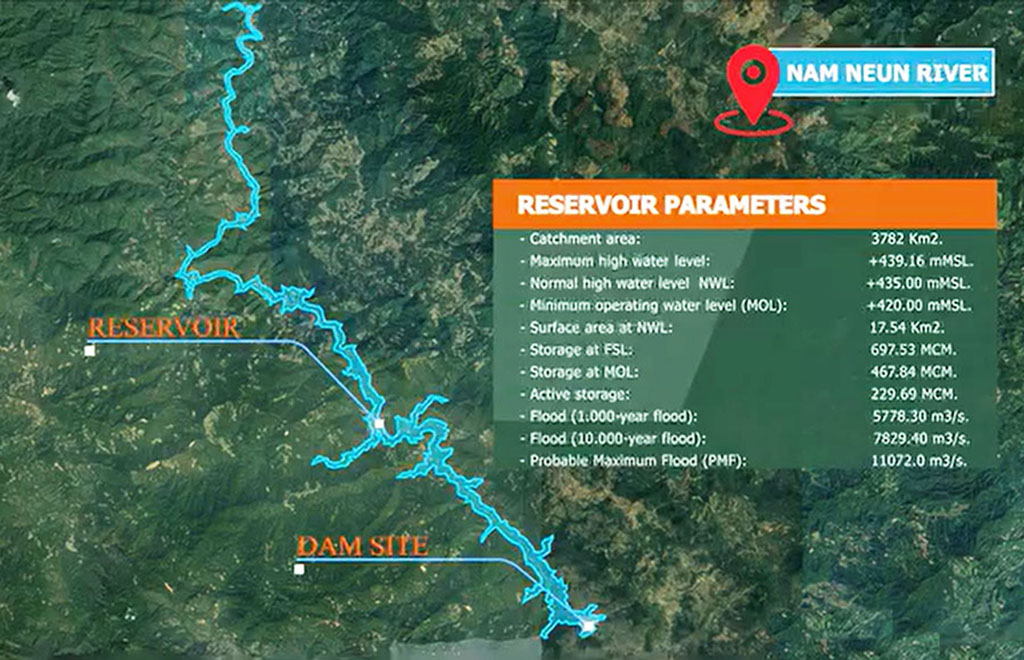

An image of what the Nam Neun 1 reservoir may look like is shown below:
zzzzz
The Nam Neun 3 hydropower plant was planned to be built in Houaphan Province and would have an installed capacity of 60 MW with annual production capacityof 250 GWh. The water catchment area is 1,400 square kilometers while the reservoir surface area would be 12 square kilometers.The dam would be 340 meters long and 110 meters high. The transmission grid is to carry 115 kV over 5 km from the Khokhin substation.

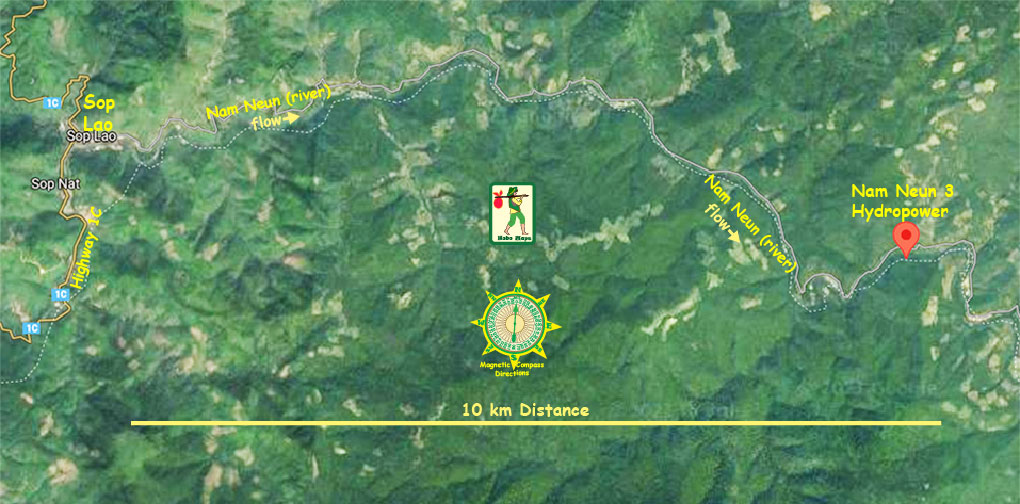

Nam Neun 3 project is located at coordinates 20°01'05.8"N 103°48'59.8"E (20.018273, 103.816601) as shown in old satellite image below with no visible activity:
The Nam Neun 3 US $140 million project includes the following: 1. Construction of 340 meter long and 110 meter high dam 2. Construction of a power house 3. Construction of substations 4. Construction of access roads 5. Installation of transformers 6. Installation of turbines 7. Installation of generators.
Laos Ministry of Energy and Mines (MoE) and Indochina Consulting Co Ltd (ICC) are jointly undertaking the construction of Nam Neun 3 hydroelectric power plant in Nam Et, Houaphanh Province, Lao PDR.
On October 8, 2009, a memorandum of understanding (MOU) was signed between the Minister of Planning and Investment and ICC.
On August 26, 2014, a power development agreement (PDA) was signed between the government of Laos and Indochina Consulting Company.
In May 2016, THB Group Sole Co. Ltd. and Vangsup Development and Investment Co. Ltd. were appointed as general contractors. Construction was originally expected to be completed in 2022.
Not sure what has happened after 2016. In 2024 it seems the Nam Neun 3 project is not progressing and may be inactive.
zzzzzzzzzzz

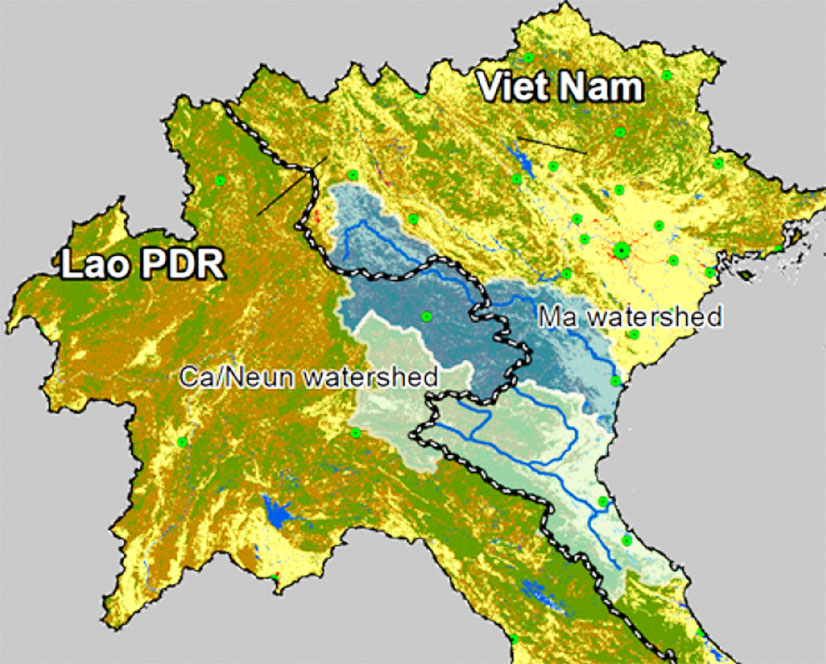

Nam Neun / Nam Ca watershed map below:
The Nam Neun/Song Ca watershed basin is adjacent to the Ma River Basin. The Nam Neun river begins on Mount Muong in the Northern Annamite Range of Lao PDR and then flows into Viet Nam, where it is known as the Song Ca. Its mainstream flows about 531 km to its mouth in Viet Nam’s Nghe An Province where it flows into the South China Sea.
The Nam Neun/Song Ca basin covers 27,200 square km, 65% of which lies in Viet Nam and 35% in Laos where it is distributed between the provinces of Huaphanh and Xieng Khouang, while in Viet Nam its territory is distributed across Thanh Ha, Nghe An, and Ha Tinh provinces.
